Empower Your Factory with Solar: The Ultimate Guide to Cost-Saving Energy Solutions

Welcome to our comprehensive guide on industrial TANFON solar energy

solutions. This presentation will explore how solar power can revolutionize

your factory operations, significantly reducing costs while increasing efficiency.

We’ll dive into the current energy challenges factories face, how solar systems

address these issues, and showcase real-world success stories.

Factory Energy Challenges

High Electricity Costs

Power expenses often represent one of the largest operational costs for factories.

Unreliable Power Supply

Outages can lead to production halts and delayed orders, severely impacting revenue.

Environmental Pressures

International buyers increasingly demand clean energy adoption from suppliers

Energy-Intensive Equipment

Heavy machinery and cooling systems consume enormous amounts of electricity

Solar Solutions for Factories

Cost Optimization

Reduce electricity bills by over 50% with solar energy systems.

Power Security

Ensure continuous production even during outages with storage systems.

Brand Competitiveness

Clean energy certification helps meet international environmental standards, winning more orders.

Long-Term Investment

Systems last over 25 years with a 2-5 year payback period.

Customized Solar Solutions for Factories

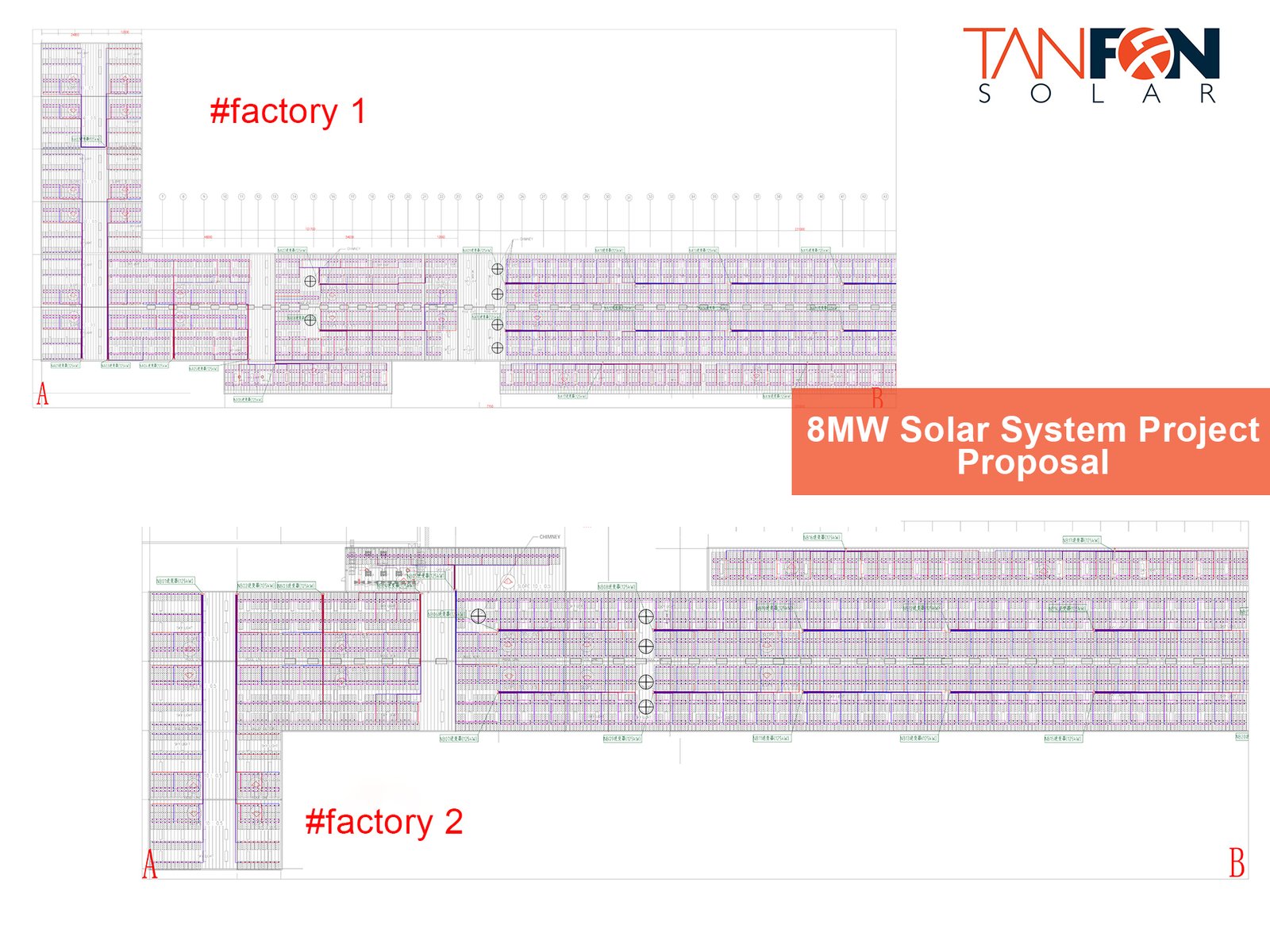

System Design

Tailored solutions based on factory size, equipment type, and energy needs.

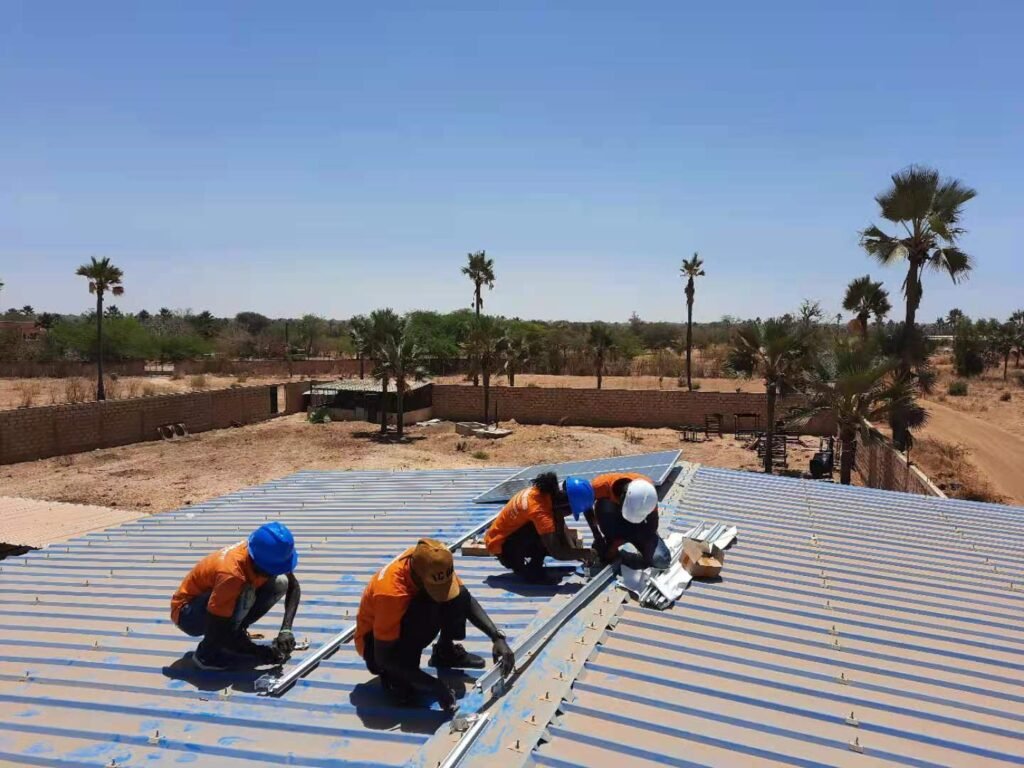

Installation & Implementation

One-stop service from survey to construction, ensuring seamless integration with existing power systems.

Smart Maintenance

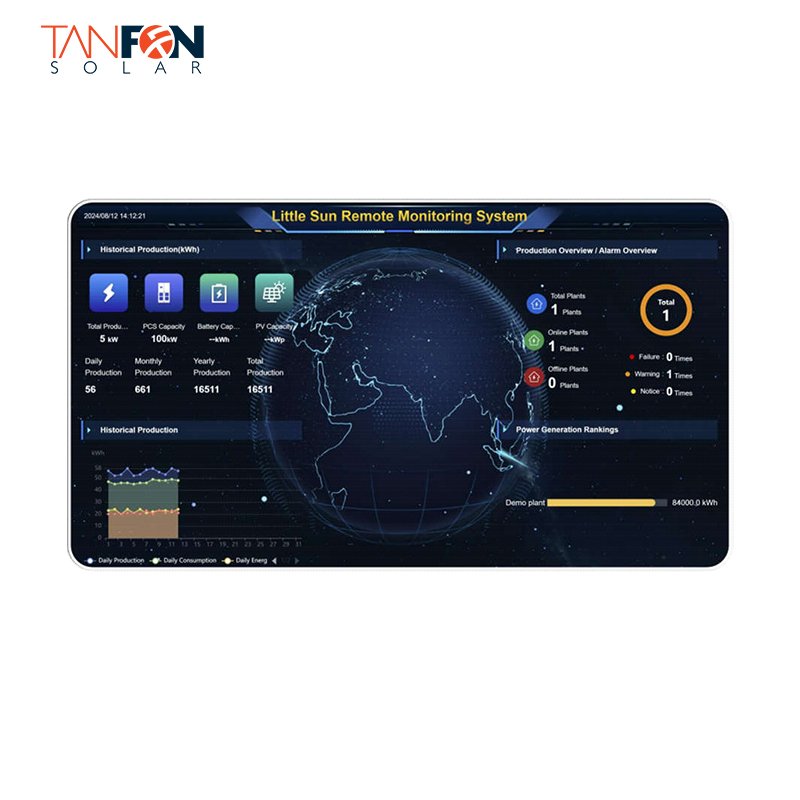

Remote monitoring platform for realtime system performance and energy use optimization.

OFP-500KW -P

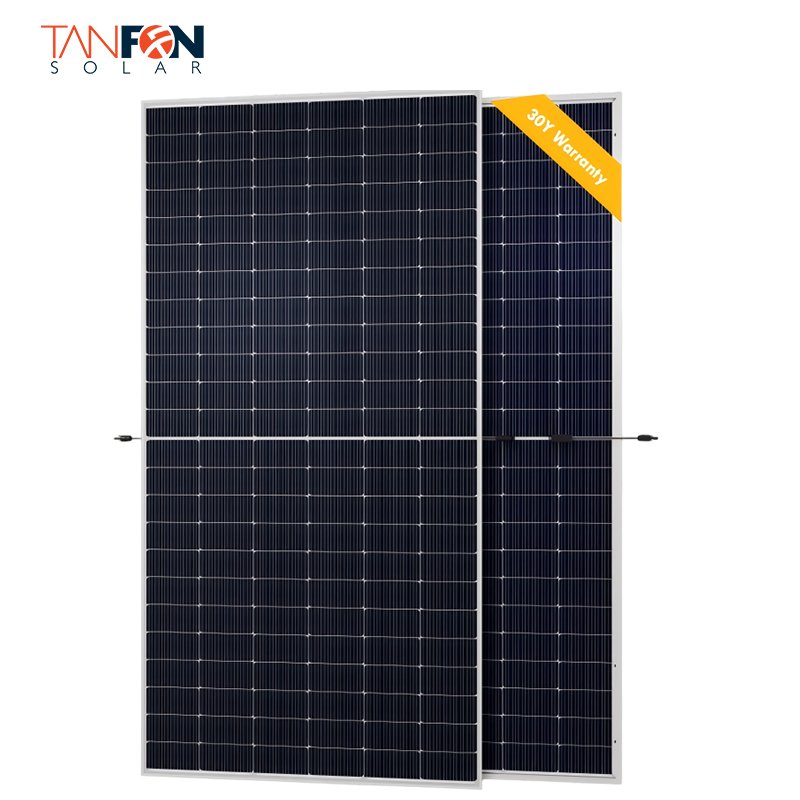

Bifaicial Solar panel

TFD595W half cell PERC solar panel(LonGi N type TopCon Solar Cell)
Vmp: 42.67V Voc: 51.30V Imp: 13.95A Isc:15.01A
Efficiency: 23.02% Size: 2279*1134*30MM
Strong anti-cracking advantage 30 years product warranty
Connect way :each 16pcs in series
PV combiner


Model:H6T-1000V Multiple PV strings inputs.
Simplify wiring between PV array and controller. Prevent hot spot effect,Reliable thunderstorm& surge protection
Product Size:360*345*145mm

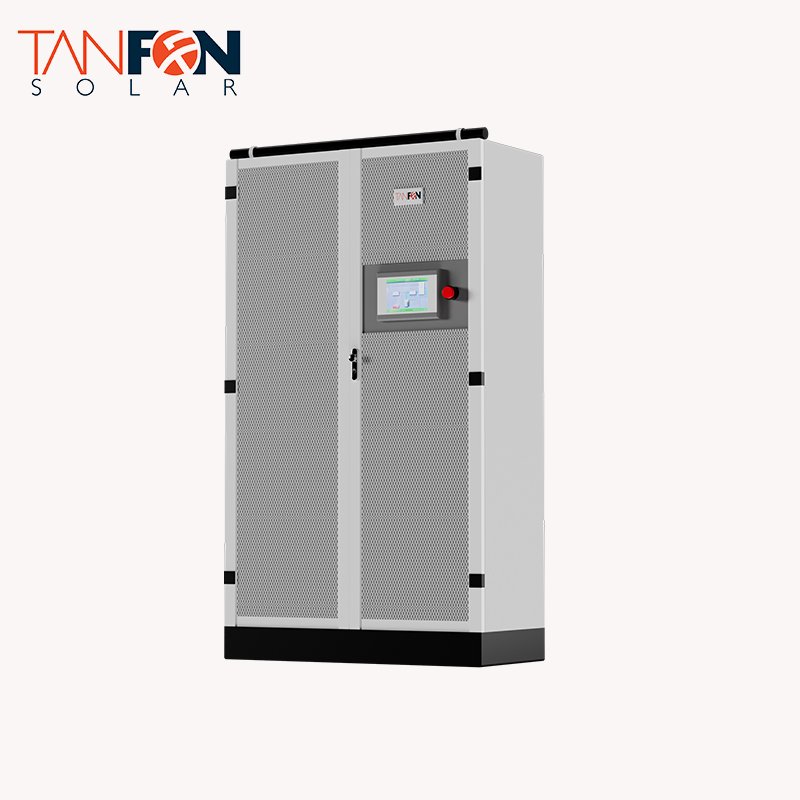

Three phase on/off grid inverter

MPS150KTR-P
MAX PV input:165KW MPPT range:250-850V
Rate current:216A Output power:165KVA
Otuput voltage :320-460V , 3L+N+PE
Battery voltage:420-850V European Efficiency:97.5%
Size:1200 x 800x 2050 mm Weight:1250KG
Communication:Standard: RS485

EMS system

The EMS (Energy Management System) of the solar energy storage system is the brain of the entire energy storage system, responsible for real-time monitoring, optimization and control of the operation of the energy storage system to improve energy efficiency, reduce costs, and ensure system safety and stability.

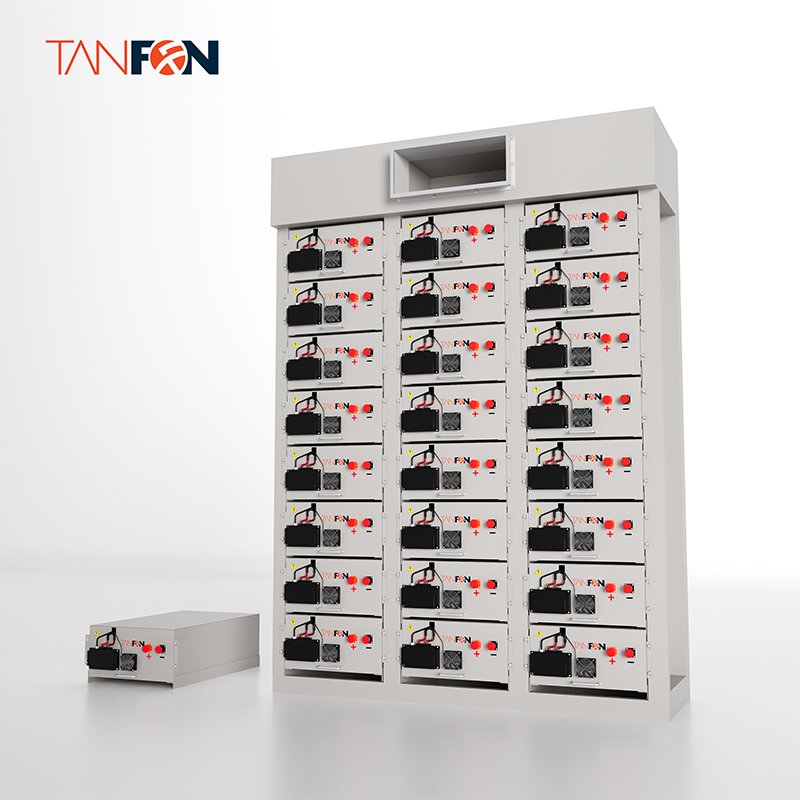

 Lithium battery

Model number: TFES512-560W Voltage:512V
Capacity: 560AH Nominal capacity: 286.72KWH
Max discharge current:280A Cycle life: 6000
Material: LiFePO4 Application: solar power
With high voltage system cabinet Size:1550*900*1650mm*4
Warranty:5 years
Latest technical advantages:Input and output are completely isolated, no leakage, constant current and constant voltage output function,lightning and fire protection, safe and reliable.

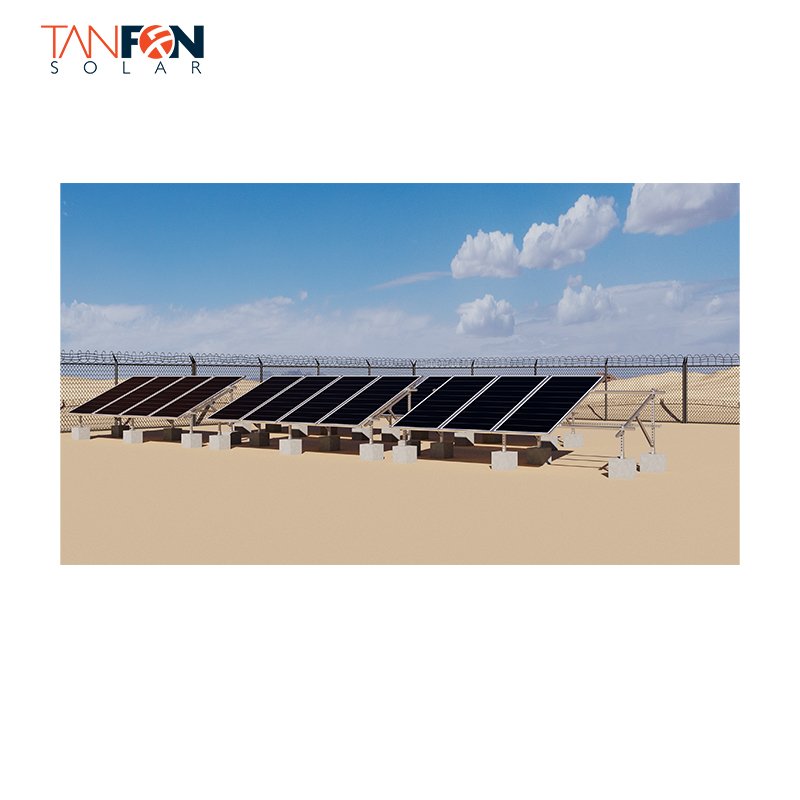

Panel rack

Slope Rooftop /Flat rooftop/ground
wind load:55m/s,snow load:1.5kn/m2
structure:Anodized Aluminum+stainless steel, Angle adjustable
(other type of rack can be customized as per client’s requirement )

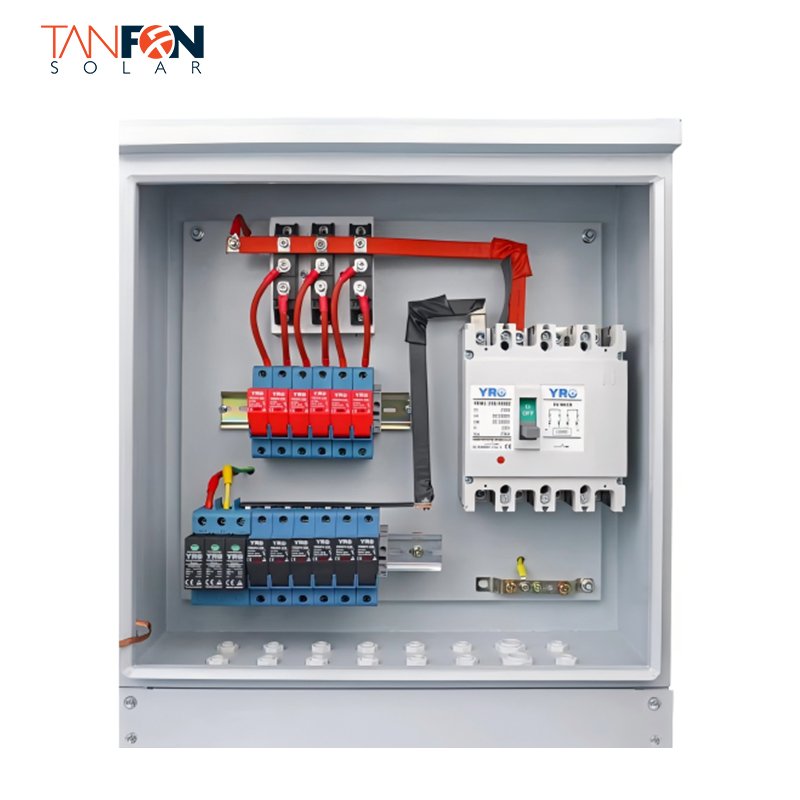

 AC combiner box

2pcs 150KW breaker +1pc 300KW main breaker

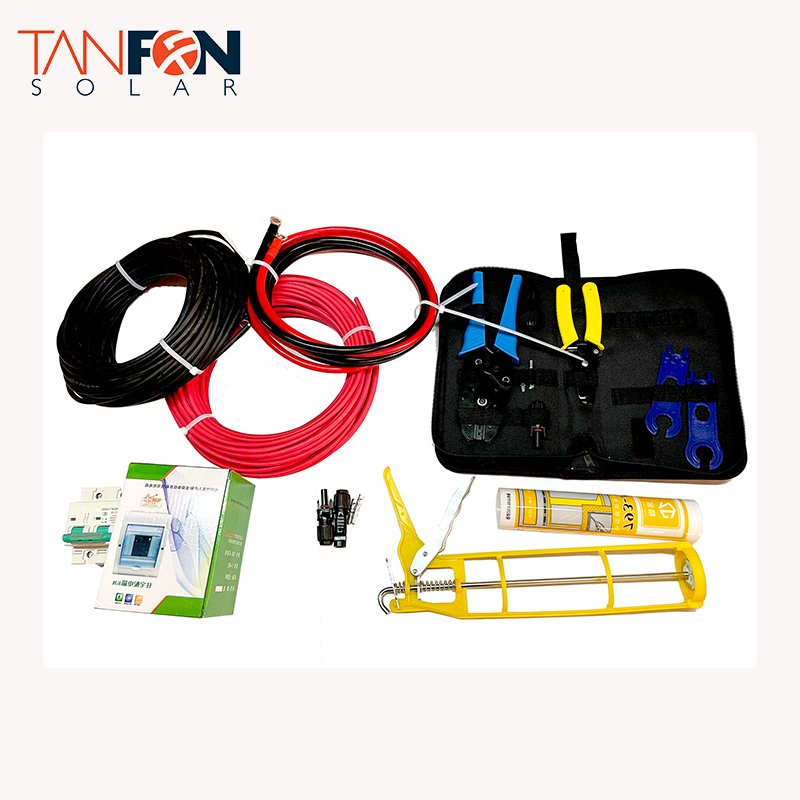

Cables

1)solar panel to PV combiner cable: 4mm²*3000M
2)PV combiner cable to battery cable:2*25mm2*10M*6sets
3)Battery to inverter cable :2*95mm²*10M *2sets
4)1set MC4 Tools , MC4 connector,Roof waterproof glue
5) battery breaker 2P 300A*2sets
The cable quotation is for reference only and will be confirmed based on the construction drawings.

Success Story: Nigerian Water Factory

System Configuration

150KW solar + 300KWh storage

Results

60% reduction in electricity bills, 90% decrease in outage impact

Client Feedback

"The system is stable and reliable, The return visit made me feel more assured about my investment."

Success Story: Tanzanian Food Processing Plant

200KW

Solar System

With integrated storage system

💲200K

Annual Savings

In operational costs

100%

Client Satisfaction

"A wise investment that helped us achieve our environmental goals."

After-Sales Service & Quality Assurance

1.Quality Deposit Mechanism

Power expenses often represent one of the largest operational costs for factories.

2.Regular Maintenance

On-site engineer inspections and optimizations for continued high-efficiency operation.

3.5 years online maintenance

Our engineers regularly help you check the power generation data of solar panels, the charge and discharge data of lithium batteries, and the output data of inverters. online guidance and communication.

Frequently Asked Questions

F:What types of equipment can the system support?

Our solar systems can support a wide range of industrial equipment, from heavy machinery to cooling systems.

No, our systems are designed with redundancies to ensure

continuous operation even in case of component failure.

Installation time varies based on system size, but typically

ranges from a few weeks to a couple of months.

Yes, with proper sizing of solar panels and battery storage, the

system can provide power during grid outages.
