Powering Malls with Solar:Cut Costs, Improve TenantSatisfaction, and Go Green
Welcome to our comprehensive white paper on solar energy solutions
for shopping centres. This presentation will guide you through the
unique challenges faced by mall owners and how solar power can
address these issues, providing reliable, quantifiable returns on
investment while enhancing your green credentials.
We’ll explore how solar systems can significantly reduce operating costs,
boost tenant satisfaction, and increase your mall’s eco-friendly appeal.
Join us as we uncover the power of solar for your commercial property.
Mall Operation Pain Points
1.High Electricity Costs
Electricity bills account for 20- 40%of mall operating costs, squeezing profits.Long-runningsystems like air conditioning. elevators,andlighting contribute to these high expenses.
2.Unreliable Power Supply
Power outages can disrupt tenant operations, leading to lost revenue and decreased customer satisfaction. Tenants have high expectations for reliable power
3.Lack of Green Competitiveness
More tenants, especially international brands, prefer eco friendly commercial spaces. Traditional power methods result in energy waste and high carbon emissions.
How TANFON Solar Power Solve Mall Proble
Reduced OperatingCosts
Solar panels on unused roof space can cut electricity bills by over 50%. These savings can be reinvested in value-added services or facility upgrades.
Enhanced Power Stability
Energy storage systems ensure continuous operation of core equipment during outages,preventing tenant losses and complaints.
Improved Green Competitiveness
Clean energy usage attracts eco- conscious tenants and consumers, increasinglease renewal rates and property value through green building certifications.
OFP-100KW -P
Solar panel
| TFD600W half cell PERC solar panel(LonGi N type TopCon Solar Cell) Vmp: 43.44V Voc: 51.54V Imp: 13.81A Isc:14.50A Efficiency: 23.22% Size: 2279*1134*30MM Strong anti-cracking advantage 25 years product warranty Connect way :each 17pcs in series. |
PV combiner
| Model:H6T-1000V Multiple PV strings inputs. Simplify wiring between PV array and controller. Prevent hot spot effect， Reliable thunderstorm& surge protection Product Size:360*345*145mm |
Three phase on/off grid inverter
| MPS00100 MAX PV input:120KW MPPT range:250-850V Rate current:144A Output power:110KVA Otuput voltage :320-460V , 3L+N+PE Battery voltage:420-850V European Efficiency:97.5% Size:1200 x 800 x 2050 mm Weight:1120KG Communication：Standard: RS485 / CAN / DRM Optional: EMS |
EMS system
| EMS:Cloud view and remote control We provide the most basic EMS functions, and finally complete the final version according to the customer’s requirements |

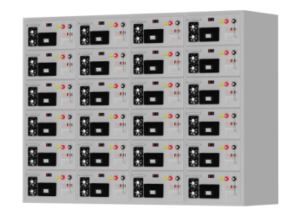

Lithium battery
| Model number: TFES716-280W Voltage:716V Capacity: 280AH Nominal capacity: 200.48KWh Max discharge current:100A Cycle life: 6000 Material: LiFePO4 Application: solar power With display to monitor With high voltage system cabinet Size:710*850*1900mm |
Panel rack
| Slope Rooftop /Flat rooftop/ground wind load:55m/s,snow load:1.5kn/m2 structure:Anodized Aluminum+stainless steel, Angle adjustable (other type of rack can be customized as per client’s requirement ) |
Cables
| 1)cabinet to inverter cable 50mm2 *5M*2pcs 2)Battery to cabinet cable 25mm2*3M*4pcs 3)PV combiner to MPPT cable 16mm2*5M*4pcs 4)4mm2 PV cable 600M, (black+ red) 5)1set MC4 Tools 6)12sets cable terminals and MC4 |
Customised Solar Solutions for Malls
Solar Panels
Maximise roof spaceutilisationfor optimal power generation.
Energy Storage
Provide reliable backuppower during peak usage oroutages.
Inverters
Ensure stable power outputto meet round-the-clockmall operations.
Smart Energy Management
Offer energy usage reportsto optimise powermanagement.
Success Stories
Papua New GuineaShopping Centre
300KW solar + 500kWh storage system.Results: 50%electricity cost savings, 90% reduction in tenant business interruptions during outages
South African Commercial Complex
200KW solar + 400KWH storage system. 0utcome: Cost recovery in 2.5 years free electricity for the next 25 years.
Investment and Return Analysis
Initial Investment
Customised solar system installation based on mall size and energy needs.
Short-Term Benefits
Immediate reduction in electricity costs and improvedtenant satisfaction.
ROI Period
2-5 years to recover initial investment through energysavings and increased rentals.
Long-Term Gains
25+ years of reduced operating costs and enhanced green credentials.
After-Sales Service and Guarantees
Quality Assurance
Deposit retention mechanism to ensure system quality andcustomer peace of mind.
Regular Maintenance
Professional team conducts periodic on-site inspections toensure long-term efficient operation.
5 years of free online operation
Help you check the power generation data of solar panelsonline, the charge and discharge data of lithium batteriesand the output data of inverters.we will provide onlineguidance and communication.
Frequently Asked Questions
Power During Qutages
Which areas can solar powersupport during a mall
outage?
Roof Modifications
Does the solar system requireextensive roof renovations?
System Upgrades
Can the system be upgradedif tenant power consumptionincreases?
ROI Timeline
How long does it take to
recover the initial
investment?
This is a supermarket project, 150kw on and off-grid solar system, goes with 272pcs 600W solar panels
