30kw Hybrid solar system

High Conversion Efficiency
Achieve up to 23.22% conversion efficiency, ensuring maximum energy output and reduced system costs over time.
Durable Anti-Cracking Design
Built with strong anti-cracking technology, perfect for harsh weather conditions, ensuring long-term reliability and performance.
Long Product Warranty
Enjoy peace of mind with a 25-year product warranty, offering long-lasting support and protection for your solar investment.

Product Details

30kW Solar Energy System – High Efficiency, Durable, and Cost-Effective

Our30kW solar energy system is designed for commercial and industrial applications, offering maximum performance, reliability, and energy savings. With advanced components and cutting-edge technology, this system ensures optimal energy production, long-term durability, and easy integration into your existing infrastructure.

why choose us

TANFON I&C Solar System:

1)Specifically designed for countries with unstable power grids, supports 100% three-phase unbalanced loading, most suitable for hotels, shopping malls, schools, and offices.

2)automatically starts and stops diesel generators, saving on fuel costs.

3)Free online operation and maintenance for 5 years, taking the final responsibility for your solar power system.

Specifications

product advantage

off-grid overload capacity, carry inductive load easily GEN port design, suitable for DG or extra solar system input

Solar Panel

TFD595W half cell PERC solar panel(LonGi N type TopCon Solar Cell)
Vmp: 42.67V Voc: 51.30V Imp: 13.95A Isc:15.01A
Efficiency: 23.02% Size: 2279*1134*30MM
Strong anti-cracking advantage 30 years product warranty
Connect way :each 14pcs in series.

PV combiner

Model:H4T-384V Multiple PV strings inputs
and controller Prevent hot spot effect
Reliable thunderstorm& surge protection
Product Size:400*425*145mm max circuit voltage: 1000V
warranty:3 years

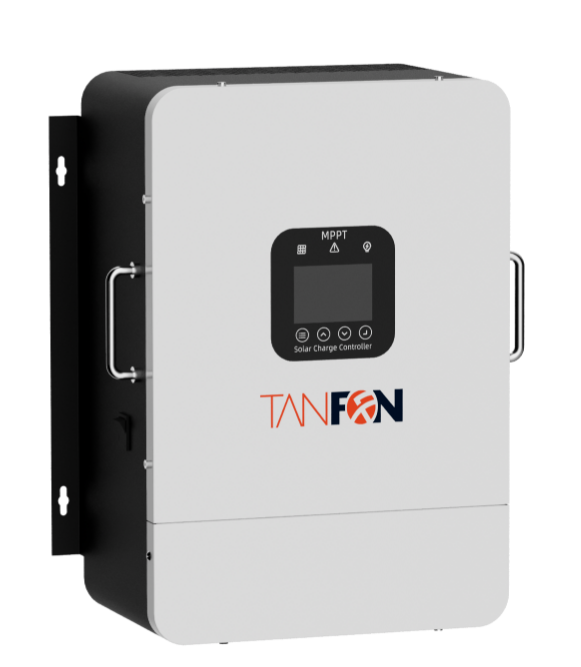

Mppt Controller

Real MPPT PV controller model:384V/100A
MPPT efficiency; >99.9%, Max input voltage :800V
various protection functions;
Size:500*384*228mm ,weight:27KG
warranty:3 years

Three phase inverter

Safety IGBT inverter :T50KW384VDC
DC voltage :360V-438V
Ouput voltage:220v/380v/415v 50hz or 60HZ
German 5S technology IGBT
Stronger for motor loads 360° guarantee
Two-way flame retardant protection
Same as government project quality .
Size:785*580*1197mm weight:400KG
With IOT extend warranty:5 years

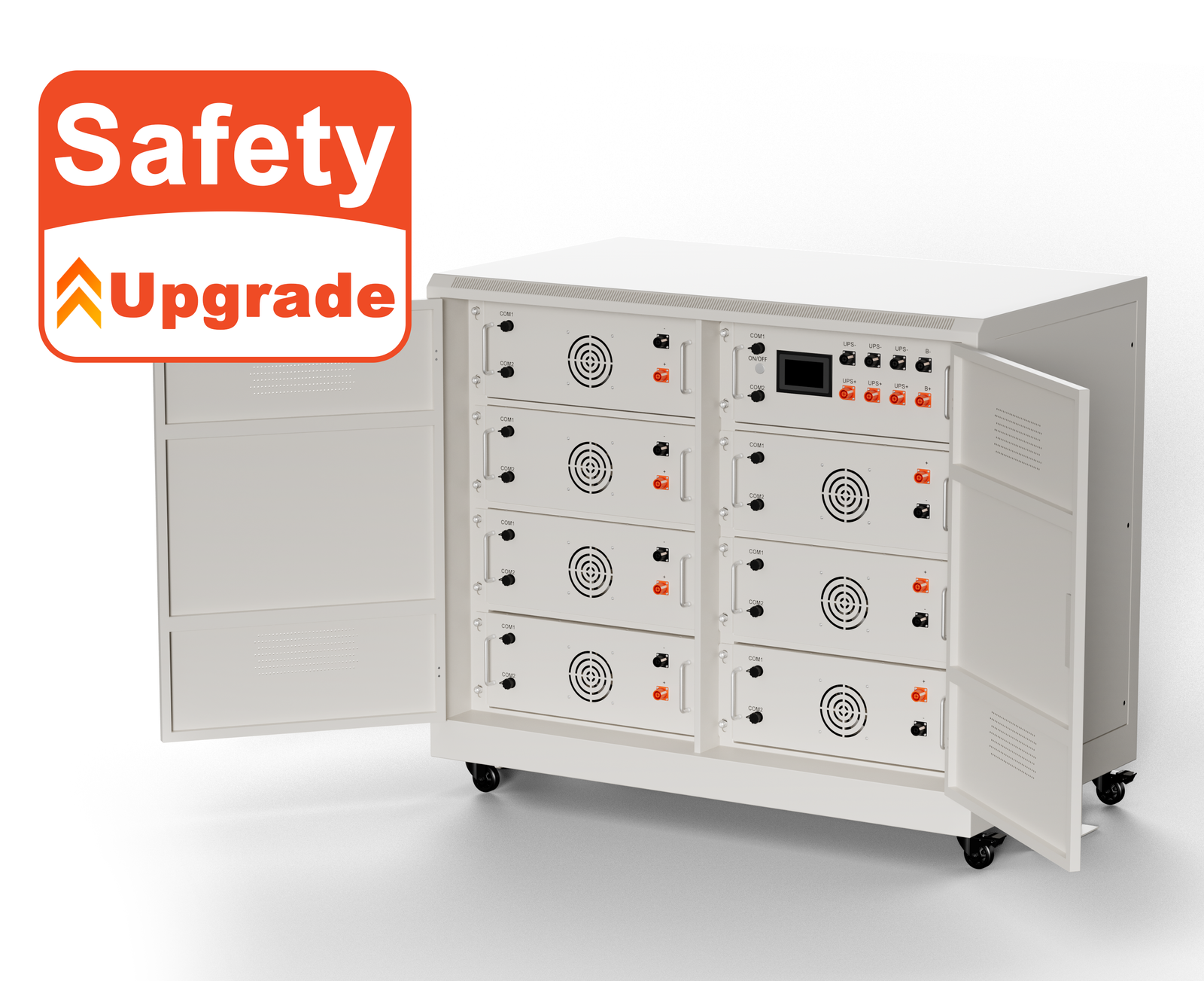

Lithium battery

Model number: TFES-S384200 Voltage: 384V
Capacity: 200AH Nominal capacity: 76.8KWh
safety discharge current:200A
Cycle life: 6000
Material: BYD battery cells
Size:825*612*1120mm weight:684KG
Latest technical advantages:Input and output are completely isolated, no leakage, constant current and constant voltage output function,Lightning protection, safe and reliable.
With IOT extend warranty:10 years

Panel rack

Slope Rooftop /Flat rooftop/ground
wind load:55m/s,snow load:1.5kn/m2
structure:Anodized Aluminum+stainless steel, Angle adjustable
(other type of rack can be customized as per client’s requirement )

Cables

1)Battery to inverter cable 16mm2*3M*2pcs
2)PV combiner to MPPT cable 16mm2*5M*4pcs
3)4mm2 PV cable 400M, (black+ red)
4)1set MC4 Tools
5)3sets cable terminals and MC4
